fct_class_appointment


Description

Class appointment fact table

Columns

Column Type Size Nulls Auto Default Children Parents Comments
class_appointment_id int8 19 null

Primary key for class appointment
organization_unit_id int8 19 √ null
dim_organization_unit.organization_unit_id fct_class_appointment_organization_unit_id_fkey R

Foreign key to organization unit
class_id int8 19 √ null
dim_class.class_id fct_class_appointment_class_id_fkey R

Foreign key to class
appointment_id int8 19 √ null
dim_appointment.appointment_id fct_class_appointment_appointment_id_fkey R

Foreign key to appointment
created_date_id int4 10 √ null
dim_date.date_id fct_class_appointment_created_date_id_fkey R

Foreign key to date dimension - date when the class appointment was created (YYYYMMDD format)
start_date_id int4 10 √ null
dim_date.date_id fct_class_appointment_start_date_id_fkey R

Foreign key to date dimension - date when the class appointment starts (YYYYMMDD format)
end_date_id int4 10 √ null
dim_date.date_id fct_class_appointment_end_date_id_fkey R

Foreign key to date dimension - date when the class appointment ends (YYYYMMDD format)
created_date_time timestamptz 35 √ null

DateTime when the class appointment was created
start_date_time timestamptz 35 √ null

DateTime when the class appointment starts
end_date_time timestamptz 35 √ null

DateTime when the class appointment ends
num_participants int8 19 √ null

Number of participants booked for the class appointment
num_in_waiting_list int8 19 √ null

Number of participants in the waiting list for the class appointment
num_anonymous_participants int4 10 √ null

Number of anonymous participants booked for the class appointment
last_updated timestamptz 35 √ null

System column. UTC Timestamp at which entry was calculated (lags shortly behind source system).

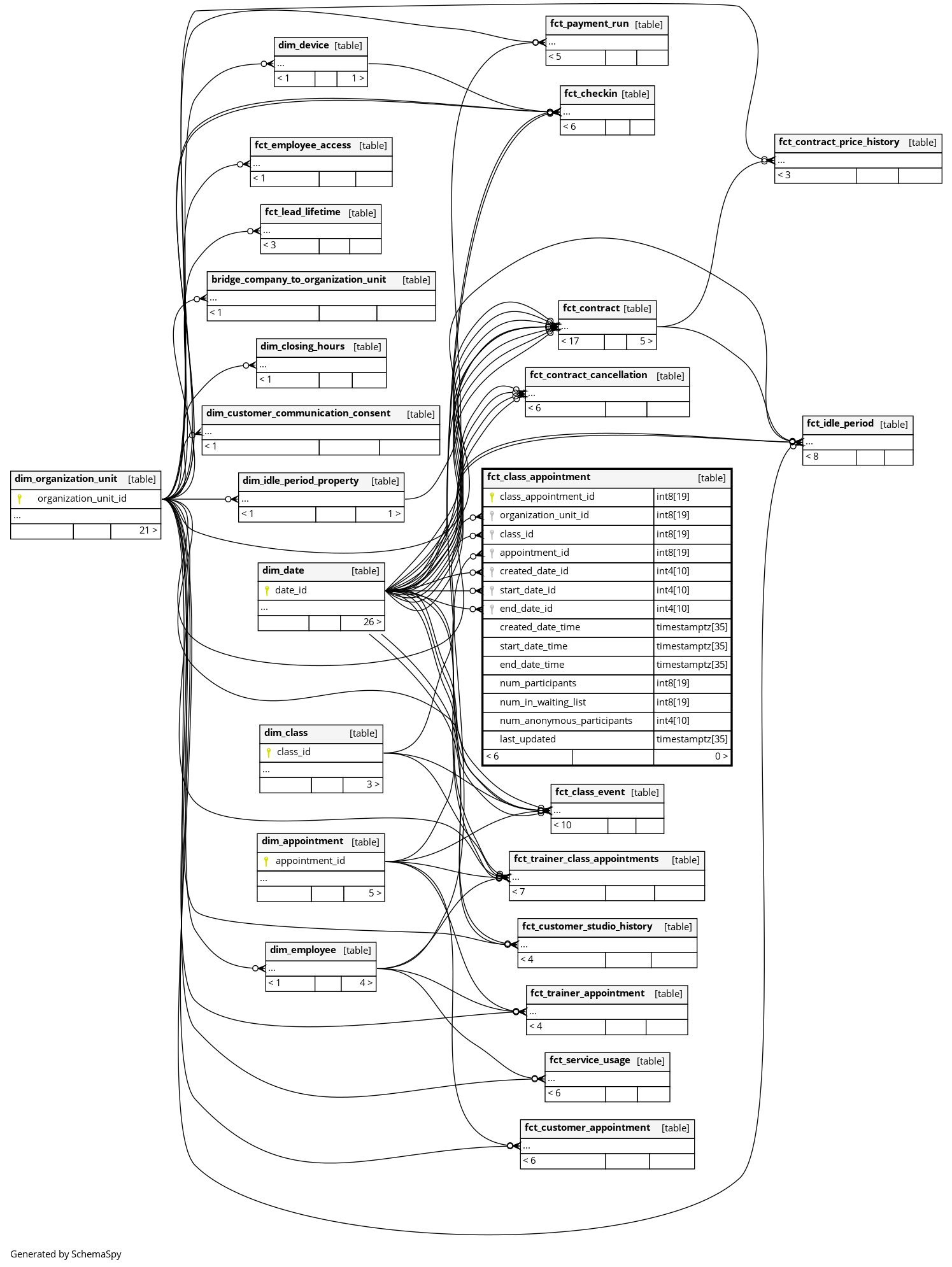

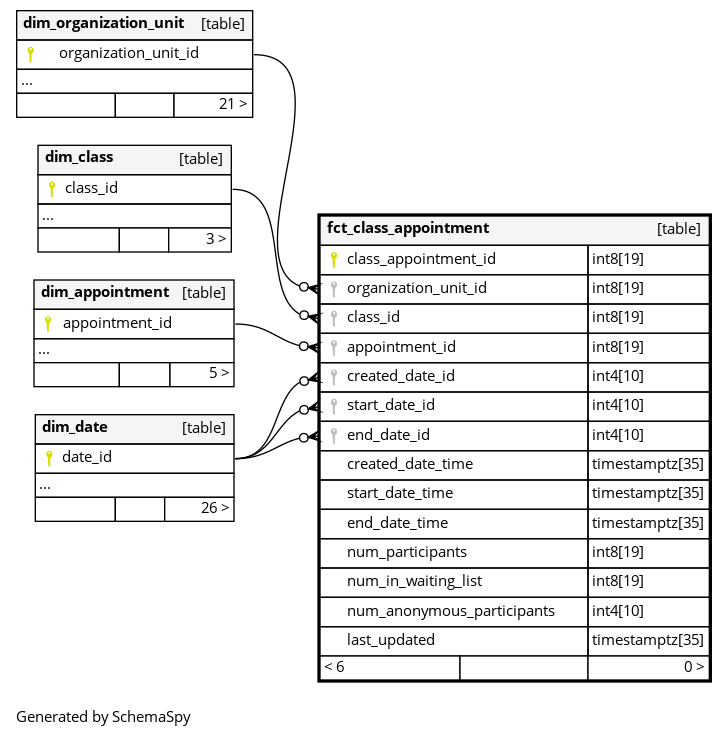

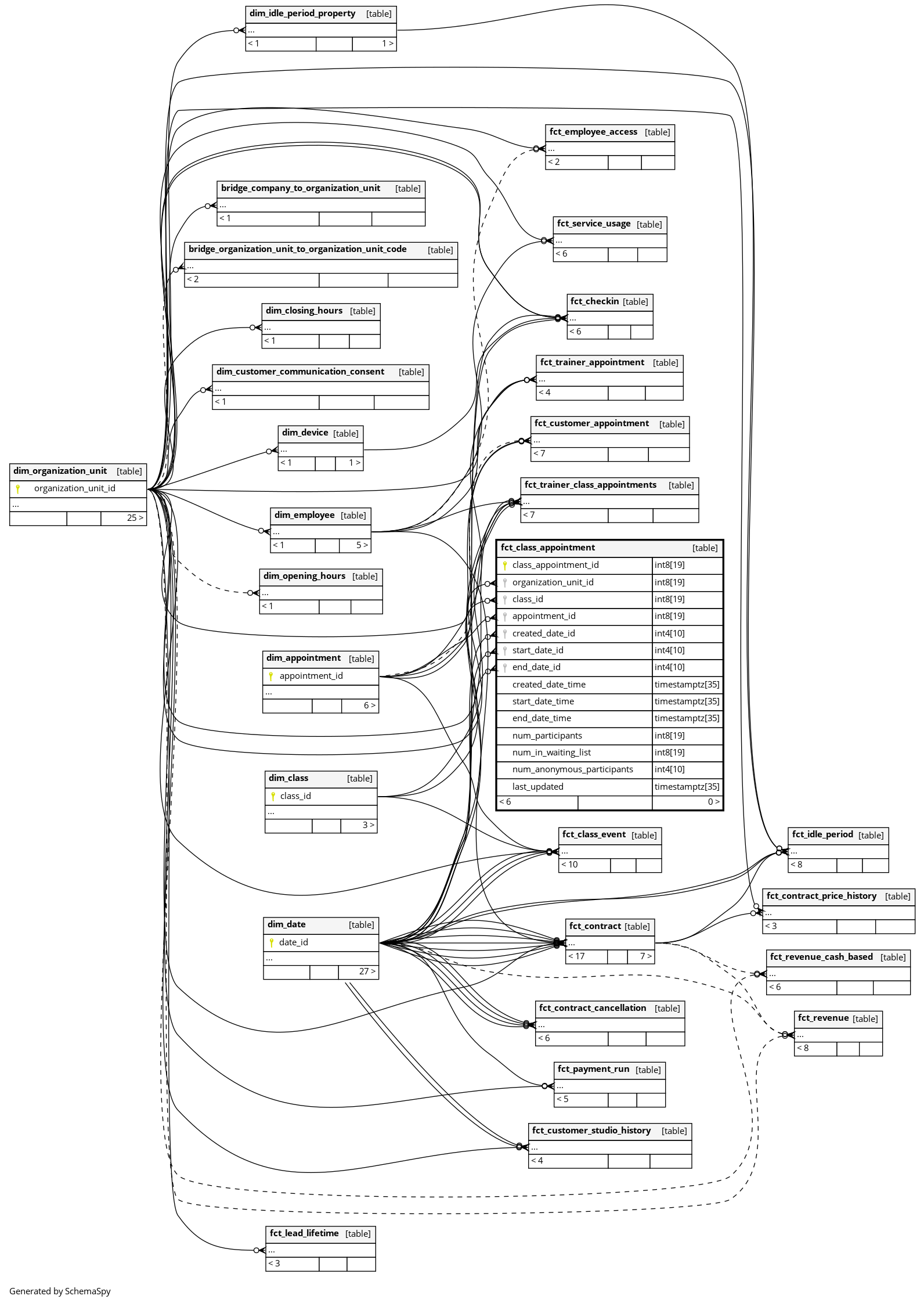

Relationships

Close relationships within degrees of separation
